Mixed Denomination Money Counter&Sorter BCS-160
- Non-stop counting with 2-pockets, hugely save your time.
- Sorting your notes by Currency / Denomination / Face / Orientation.
- Serial number: Read serial number and output
- Sorting: Sort bills by denomination/face/ort/currency
Non-stop counting with 2-pockets, hugely save your time.
Sorting your notes by Currency / Denomination / Face / Orientation.
Why Choose RIBAO BCS-160 Mixed Bill Sorter?
1. Two pockets bill counting and sorting machine, able to sort the banknotes based on denomination, face and orienttaion, reject pocket for non-stop counting, more suitable for banks or business owner who need to deal with heavy duty money counting and sorting work.
2. 2 CIS (contact image sensor technology), UV, MG, IR counterfeit detection.
3. Multi currency, Mixed denomination value counting, provide a clear breakdown of quantity, denomination and value, as well as a Serial number list for tracking.
Large volume, larger cash handling capacity.
Process twice as much cash in the same amount of time as a regular cash counter.
Bank Grade Counterfeit Detection
Anvanced counterfeit detection sensor 2CIS, UV, MG, MT, IR, ensure 100% accurate counting, protect your business from loss.

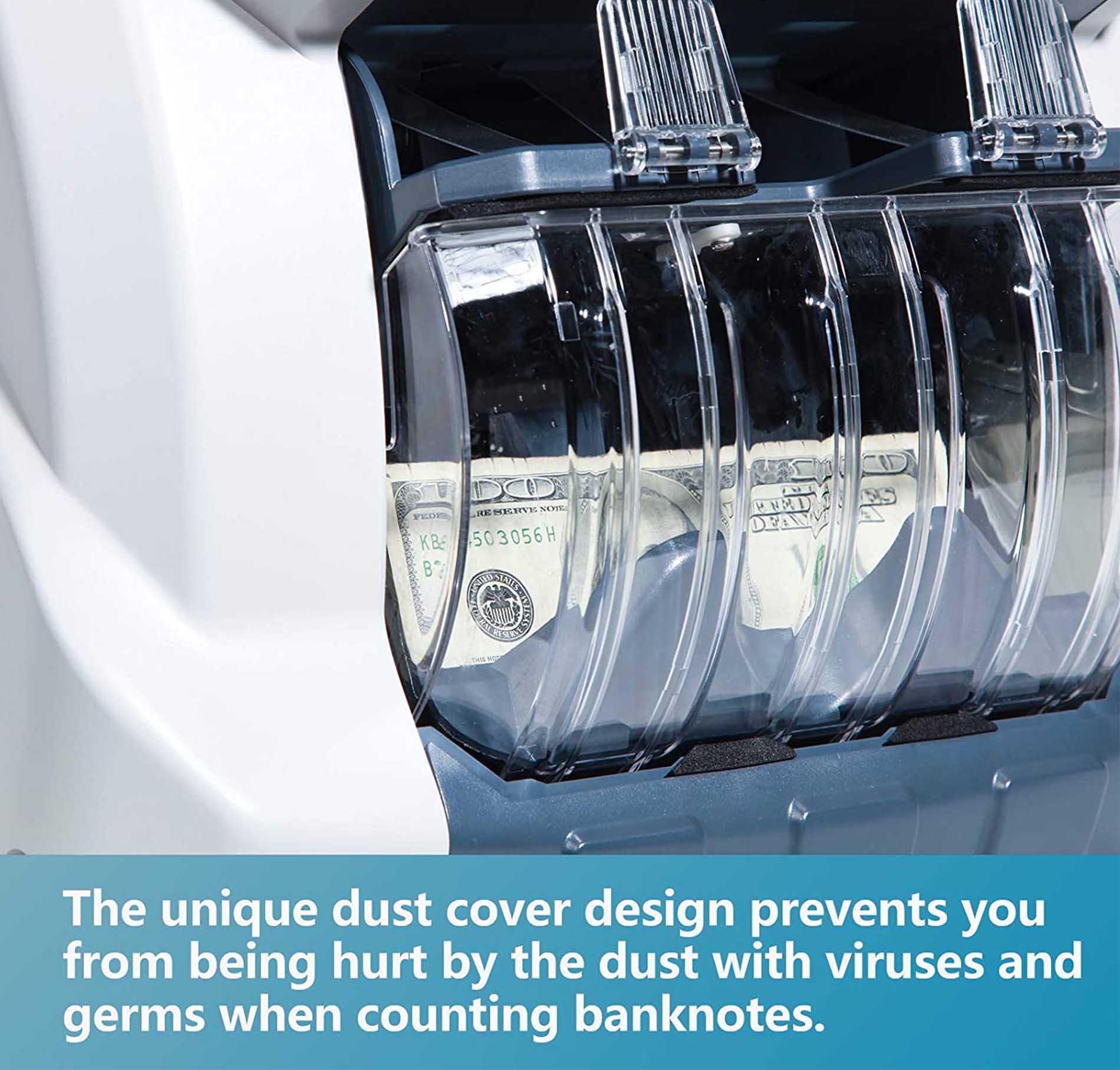

Unique Design of Dust proof cover
Prevents you from being hurt with viruses and germs when counting banknotes
What we provide？
Strong supply chain
Accepted orders can be put into production at once, deposits not necessary. With JustInTime production mode, Ribao Technology is able to deliver standard products within 1 week. Our strong supply chain promises no delay in our partners' sales activity.
Efficient service
Ribao Technology provides 24 hour response, 48 hour proposal, 72 hour solution. We also have branches set up in the United States and Europe to provide training service on site.
Professional support
Our team consists of professionals from top universities in China with over 20-year of research and development experience. Together we have created 38 technology patents internationally and sent Ribao Technology to a leading high-tech enterprise for 10 years.
Technical Details
| Hopper capacity | 500pcs |
| Stacker capacity | 200pcs |
| Rejected pocket capacity | MAX 100pcs |
| Display | 3.5 inch TFT screen |
| Suitable note size | Length: 100mm~175mm |
| Width: 50mm~90mm | |
| Suitable note thickness | 0.05mm~0.12mm |
| Speed | 800/1000pcs/min(MIX & SDC Mode) |
| 1200pcs/min(CNT Mode) | |
| Batch number | 5~199pcs |
| Connectivity | External printer/PC port: RS232 |
| LAN port:RJ45 | |
| External display port: RJ12 | |
| Software upgrade/Information collection port: USB/LAN | |
| Save counted information port: Micro-SD card | |
| Available currency software | more than 40 currencies |
| Operation modes | Single denomination sorting/Mix counting/Pieces counting/Face/Orientation Sorting |
| Counterfeit detection | Ultraviolet detection(UV) |
| Magnetism detection(MG) | |
| Metal thread detection(MT) | |
| Infrared image detection(IR) | |
| Power supply | AC 220V 50Hz ±10% |
| AC 110V 60Hz ±10% | |
| Power consumption | Sleeping mode ≦15W |
| Operation mode≦70W | |
| Working Condition | Temperature(0~40°C）Humidity(40~90%) |
| Storing Condition |
Temperature(-40~55°C）/Humidity(10~95%) Air Pressure(70-106kpa) |
Frequently Asked Questions

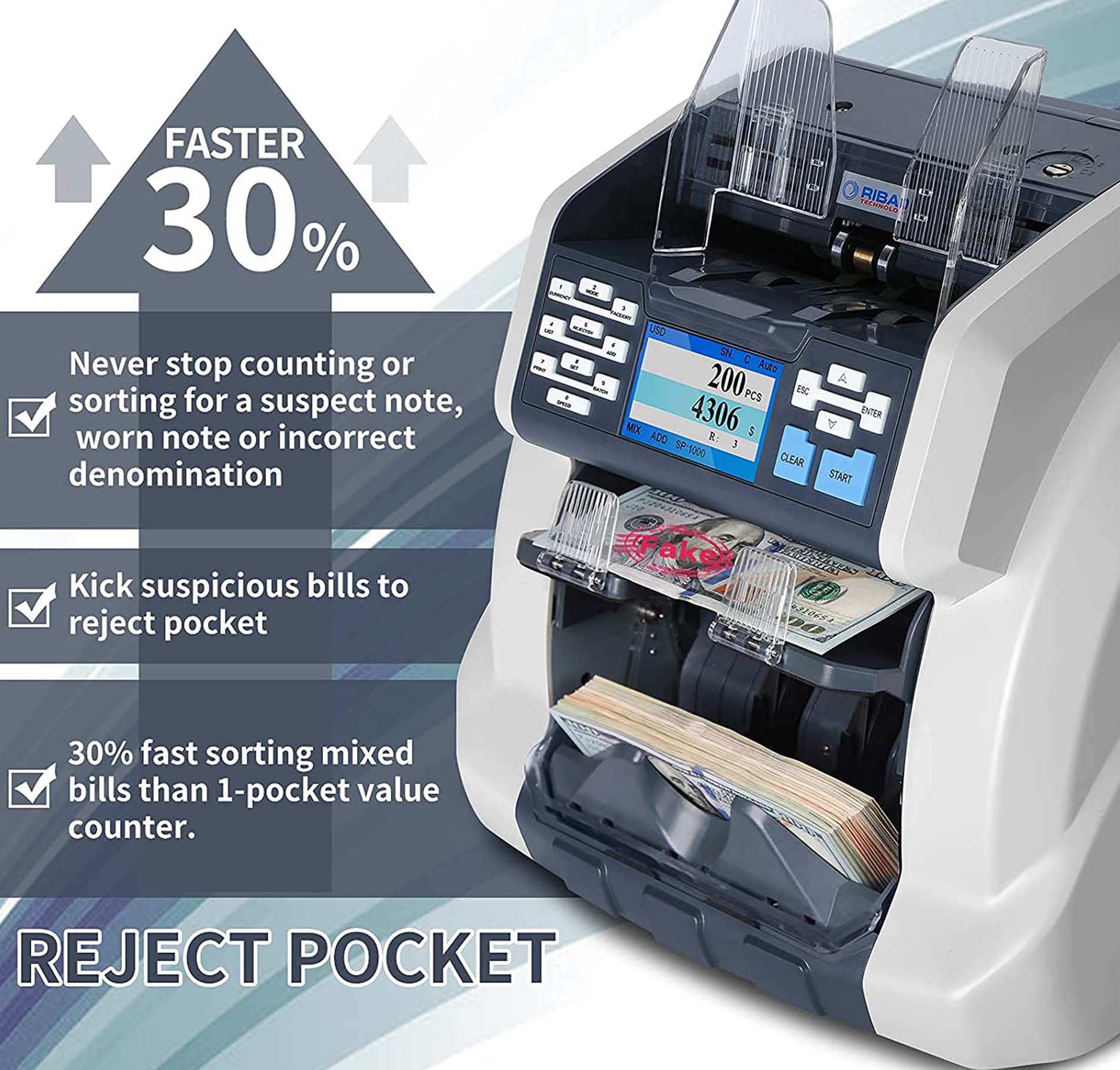

What does the reject pocket do?
A)When you sort mxied denomination of bills, the machine counts only one denomination and send other denomination to reject pocket.
B)When you sort mixed currencies, the machine counts only one type of currency and send other currencies to reject pocket.
C)The counterfeit bills, worn, too damaged bills will be kicked to reject pocket.
D)You can also sort bills by FACE and Orientation.
What is the function dust proof cover ?
The dust proof cover is a unique feature of BCS-160, it prevents the users from being hurt by dust and maximumly lowers down noise during counting. You can choose to turn on/off this function.
What is the difference between two pockets money counter and one pocket money counter?
A) The single pocket money counter will stop counting when you sort a stack of mixed bills and you need to remove the unwanted bill manually.
B) The two pockets money counter will never stop counting since the reject pocket can hold the unwanted banknotes, so it is called non-stop money counting machine, hugely boosts money handling efficiency.
Can I upload the serial number of bills to computer?
Yes, you can find us to get the cash management software, upload the counting details and serial numbers to PC, great for money tracking.
