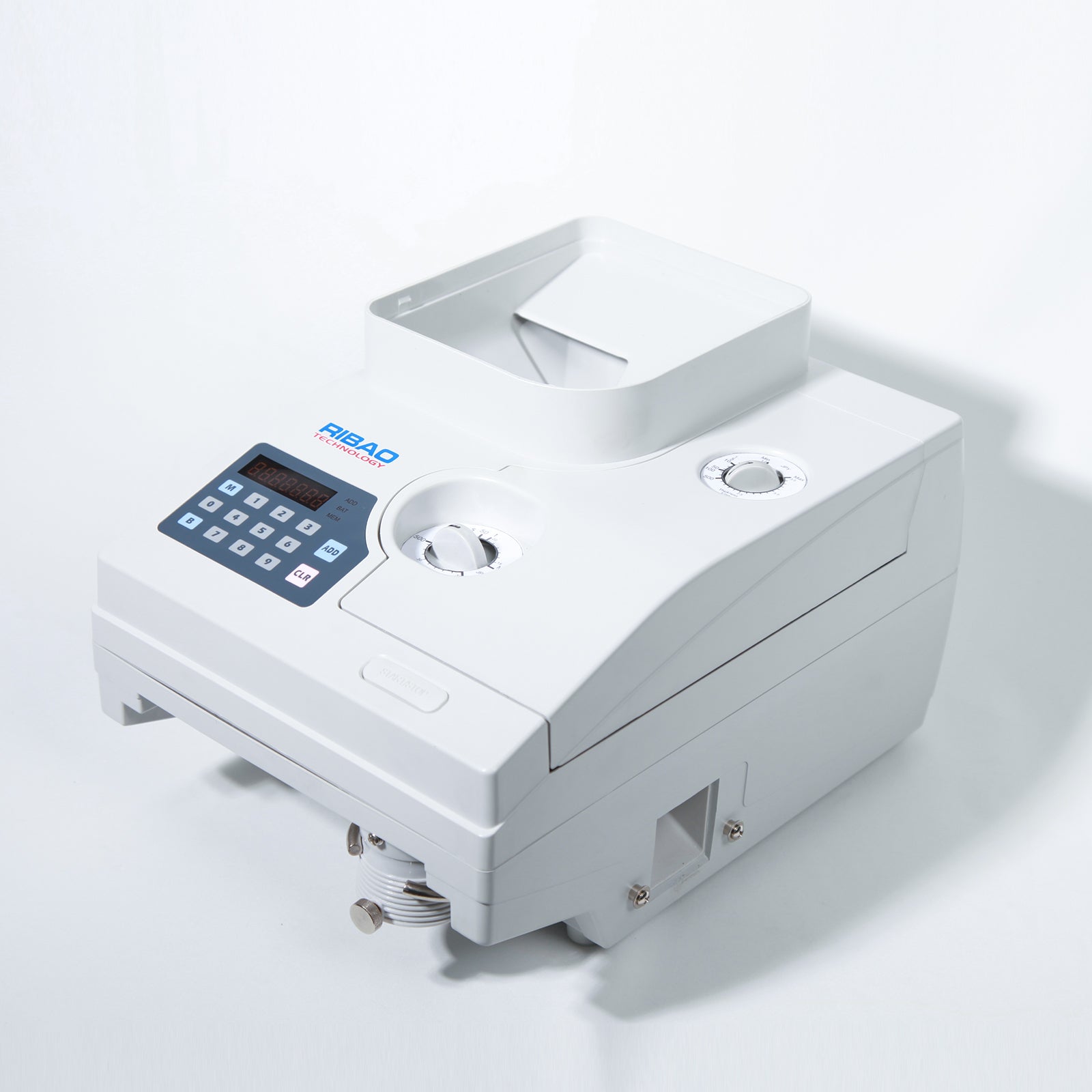

Medium Capacity High Speed Coin Counter HCS-3300
- Countable coins: All US, Canadian, Mexican coins
- Counting speed: 2300 coins/min
- Hopper capacity: 12000 coins with the hopper extender installed.
- Continuous Counting Mode, Batch Mode, Accumulation Mode.
Ribao HCS-3300: A Machine Built to Meet Your Demand
Ribao HCS-3300 can count all US, Canadian, Mexican, other foreign coins, and tokens thickness within 0.7-3.8mm, diameter within 14-34mm.
With a large hopper capacity of 12000 coins and the counting speed of 2300 coins/min (for the diameter of the coin 15 mm), you can handle your coin counting more efficiently.
BOTH SUITABLE FOR A LARGE OR SMALL NUMBER OF COINS
If you have a large number of coins to be counted, install the Extended Hopper (supplied) as the right diagram. If you don’t need the Extended Hopper, you can push the point on the Extended Hopper as the right diagram to release the plastic hook, meanwhile, pull upward the Extended Hopper.
Professional Coin Counting Machine
Heavy-Duty, Durable and Reliable
All parts of Ribao HCS-3300 are made of strong and durable materials. Most inner parts are made of stainless steel, and a strengthened belt is used. This assures it to keep well working after being used for years.
The Side Cover can be opened. Then, pull up the Front Feed Pulley Arm and push & pull the Lock Plate upward to remove the foreign objects.
Fix A Coin Bag or A Coin Tube
When you use coin bag, please place the bottom of the coin bag on the floor, or on a stand, to prevent the machine from tipping over, Install the Coin Reject Box onto the side of the machine.
Easy to Set and Use
Turn on the power, adjust the thickness knob and diameter knob according to the coins you are counting, pour the coins into the hopper, press the individual START button, the machines starts counting.
The machine is not designed for counting mixed coins, but if there are some other denominations mixed, please remember you need to count from the bigger coins to smaller coins, means you need to set the knob based on the biggest coins first, then the smaller coins will be off sorted from the reject cup.
Counting Speed: 2300 Coins/Min.(for coins with a diameter of 15 mm or .5906 inches)
Hopper Capacity: 3600 coins (without the hopper extender installed for coins diameter of 15 mm and thickness of 1.1 mm.)
12000 coins (with the hopper extender installed for coins diameter of 15 mm and thickness of 1.1 mm.)
Thickness: 0.7 to 3.9 mm (.0275 to .154 inches)
Diameter : 14 to 34 mm (.55 to 1.33 inches)
|Counting Speed||2300 Coins/Min. (for coins with a diameter of 15mm and thinckness of 1mm)|
|Hopper Capacity||12000 coins (for coins diameter of 15 mm and thickness of 1 mm.)|
|Countable Coin Size||Thickness:0.8 to 3.8mm|
|Diameter :14 to 34 mm (Adjust coin qty. adjusting gate to minimum for diameter ＜24mm; to middle for diameter 24~25mm; to maximum for diameter ＞25mm)|
|Max. Counting Display||9999999(Counting Display)|
|Counting Mode||Continuous Counting Mode|
|Batch Counting Mode: 1-9999|
|Accumulation Counting Mode|
|Power Consumption||85 W (During operation)|
|Power Requirements||AC 120V ± 10%, 60Hz or AC 220V ± 10%, 50Hz|
|Environment For Storage||-30º C — +80º C|
|Environment For Use||0º C — +40º C|
Frequently Asked Questions
Does ribao hcs-3300 support 220V?
It does not support 220V. But we have another coin counter mode HCS-25, which can be used in both 110V and 220V, you can consider that model. Any question, please feel free to contact email@example.com
What is the difference between your two models hcs-3300 and hcs-3500ah?
Hello Ribao customer, compared with HCS-3300, HCS-3500AH has a bigger motorized hopper, the coins were transported by a flat belt to the disk, you can put more coins at one time and also control the coin flux to avoid jam. Please feel free to contact our after sale team. firstname.lastname@example.org
